Waitgate

---

🔁 Self-hosted reverse proxy tunnel for securely exposing HTTP and TCP services.

---

✨ Features

• Expose HTTP, HTTPS and raw TCP services such as SSH or RDP

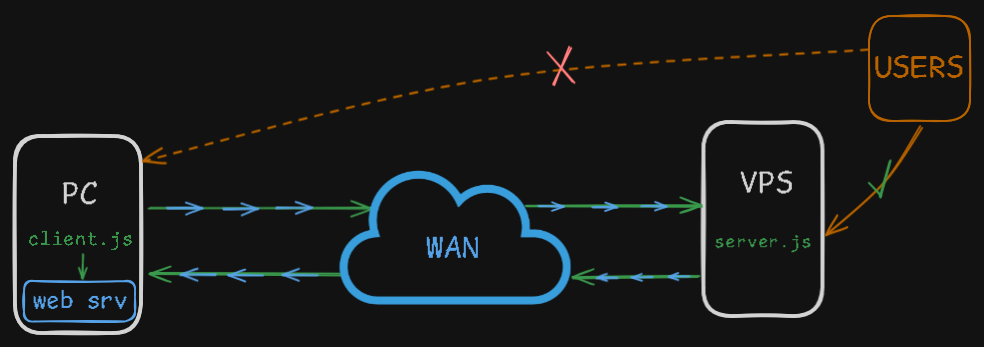

• Outbound WebSocket tunnel with no inbound port required on the target machine
• ChaCha20-Poly1305 encryption for raw TCP tunnel payloads
• Token-authenticated tunnel connections
• Dashboard authentication with optional TOTP 2FA
• Rate limiting and temporary blocking against abusive requests
• Single public port shared by HTTP and raw TCP traffic
• Dashboard-generated client.js with automatic WS/WSS endpoint configuration
• Real-time tunnel status and connected client information
• Fully self-hosted and open source

---

🚀 Usage

Clone the repository and install dependencies:

git clone https://github.com/Nullmess/Waitgate.git
cd Waitgate
npm install

Start Waitgate:

npm start

Open the dashboard:

http://localhost:8000/dashboard

The default username is admin. A random dashboard password, tunnel token and encryption key are generated on first launch and stored in .env.

From the dashboard, download client.js, then configure the local service to expose:

const LOCAL_HOST = '127.0.0.1'
const LOCAL_PORT = 443

Run the tunnel client on the target machine:

node client.js

Waitgate automatically reconnects the client when the WebSocket tunnel is interrupted.

---

⚙️ Configuration

Waitgate creates and maintains its local .env configuration automatically.

Main variables:

TUNNEL_CHACHA_KEY   ChaCha20-Poly1305 key used for raw TCP tunnel payloads
TUNNEL_TOKEN        Bearer token used to authenticate the tunnel client
DASH_USER           Dashboard username
DASH_PASS           Dashboard password
LOGIN_SECRET        Key used to protect dashboard login data
TOTP_ENABLED        Enables or disables dashboard TOTP authentication
TOTP_SECRET         TOTP secret when 2FA is enabled
WHITELIST_IPS       IP addresses excluded from rate limiting
PORT                Public listening port, defaults to 8000

---

🔐 Security

Waitgate secures raw TCP tunnels with ChaCha20-Poly1305 encryption, token authentication and optional TOTP 2FA, while HTTPS/WSS is recommended for HTTP traffic.

---

⚠️ Disclaimer

Waitgate is intended for legitimate and authorized use only; users are responsible for ensuring that their use of the software complies with applicable laws, policies and permissions.

---

👤 Author

Give a ⭐️ if Waitgate helped you!

---

📄 License

Copyright © 2026 Nullmess.
This project is licensed under the MIT License.
